เครื่องสแกนรถบรรทุกรถเก๋งกระบะX431Pro3s+ and smartlink

 New arrival LAUNCH X431 PRO3S+ Smartlink HD 12VCar & 24V heavy Truck Full System Diagnosis tool, 60+ Reset functions , remote diagnosis ,Bi-directional Control,12 in 1 data stream ,5 Years warranty ,Multi Languages Supported + Global Version(Can be used in worldwide)+64GB Storage(Can be extended to 256GB)

Introduction:

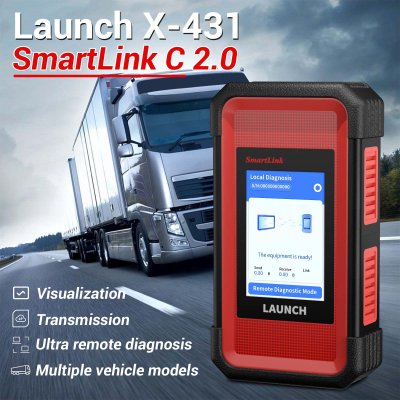

X-431 PRO3S+ Smartlink HD is a high cost-effective automotive diagnostic device developed based on Android 10.0 System. It can support both passenger car and commercial vehicle diagnosis with Smartlink C V2.0 module. X-43 1 PRO3S+ Smartlink HD can cover more than 98% of the car models in the market, realize the fault diagnosis of t the whole system, and has many advantages such as strong diagnosis function and accurate test data.

Why Choose X431 PRO3S+ Smartlink HD

1.Full vehicle system coverage for over 150 brands in the world, which is continually updated.

2.Automatically identify VIN upon connection to the vehicle for intelligent diagnosis.

3.Read all OTC types for full system, view, graph and record data PIDs, support bi-directional controls,actuation test and all other diagnostic functions.

4.Support ECU Coding and Bi-directional Control(Actuation Test).

5.Support expansion module: endoscope, IM-MMObolizer PrograA-mmer and Wi-Fi printer .

6.60+ special functions available All kinds of common maintenance and reset items including Oil lamp reset, DPF regeneration, ABS bleeding etc. can be done..

7.Diagnostic records and reports can be stored in the cloud without any concern of data missing.

8.Guided function for Volkswagen and Audi.

9.Not only support 12V Cars,but also support 24V Trucks.

2024 Better Hardware

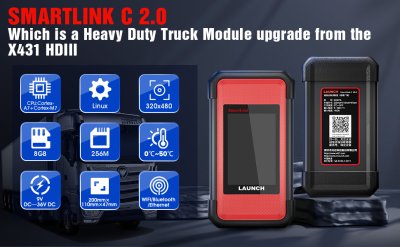

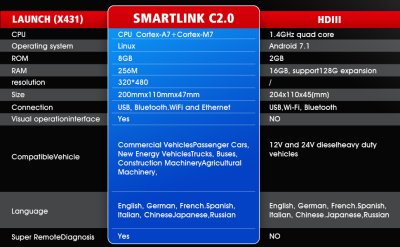

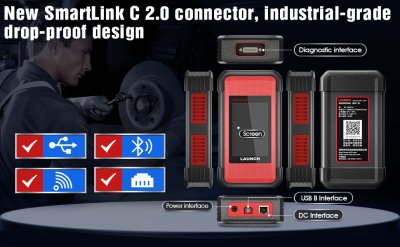

2024 TOP VCI SmartLink C HD V2.0 support CAN FD/DOIP/J2534 Protocols;2.0Ghz 4-Core Cortex-A55 Processor accelerate diagnostic speed;Android 10.0 OS Easy to use and Keeps a smooth diagnostic operatio
4GB RAM & 64GB ROM Memory,10.1-inch TFT-LCD with 1280 x 800 resolution & capacitive touch screen;5G&2.4GHz Dual Wifi:Communication automatically connects about 33ft;Built-in 8MP rear camera ;180°Adjustable stand for hands-free operation
47880mWh(7.6 V,6300mAh) super large lithium-ion battery for up to 10 hours of continuous operation

2024 NEW ADDED OE-LEVEL Advanced Functions of LAUNCH X431 PRO3S+ Smartlink HD
Relative Compression Test
Active Test for Diesel Vehicles : Cylinder cut-out test,compression test,DPF regen, VGT calibrations, cylinder cut-out test, SCR commands,glow relay activation check,DPF soot load reset.reset the DPF filter,Parameter changing,DPF Stationary Regen,Trip Reset,Aftertreatment reset,Fuel Injector Reset,Fuel Leakage Test,Fuel Injector Calibration,VGT Actuator Installation & Calibration,SCR System Output Component Test,SCR ADS Self Check,Idle Shut Down Timer,Cruise Speed Limit Change
Cylinder Balance test/Cylinder leakage test/Cylinder Pressure variations
Component Matching: Compatible with Volkswagen / Skoda / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
Online Coding: Compatible with Volkswagen / Audi / Benz / BMW / Seat / Porsche etc.
Online Account Login Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Online Calibration: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Online Parameterization: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Anti-theft IMMO Serivce: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Guided Functions: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Power Balance: Compatible with Chrysler / GM / Ford etc.
PrograA-mmable Module Installation: Compatible with Ford / Mazda etc.
Flash Hidden Functions: Compatible with BMW / Porsche / Toyota / Subaru etc.
Key Programming : Add, Delete & ReProgram Keys, Rewrite smart Keys, Replace smart Key ECU, Replace KNOB IGNITION; Reset Key: Relearn a Key.

LAUNCH X431 PRO3S+ Smartlink HD Features:

1.Actuation Test

This option is used to access vehicle-specific subsystem and component tests.Available test vary by vehicle manufacturer, year, and model.During the actuation test, the display tablet outputs commands to the ECU in order to drive the actuators, and then determines the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators,such as switching a injector between two operating states

2.ECU Coding

X431 PRO3S+ Smartlink HD advanced diagnsotic tool comes with advanced ECU coding & online ECU coding capability (on the majority of Volkswagen) to make full use of the hidden features like auto park, tilting rear-view mirrors, unfolding mirrors, customizing daytime running light, disabling auto engine start-stop and etc depending on the electronic features already built-in.

3.Guided Functions for Audi, Volkswagen Skoda and Seat

On-Screen Instruction step by step , LAUNCH X431 PRO3S+ Smartlink HD Automotive obd2 scanner Guide you to be an expert in Car Diagnostics even you are a newbie. Thanks to this function , you dont need to reply on a mechanics suggestion all the time.

4.Full System Diagnosis

Engine drive system

ABS System

Automatic Transmission

SRS-Airbag

Suspenstion System

Safety Alarm System

Audio System

IM-MMO IM-MMObilizer System

DPF System

ESP ASC Brake System

ACC System

Air Conditioning System

Auto Headlamp System

Car Radio Audio System ...........etc.

5.60+ Reset Functions

In addition to amazing & powerful diagnostic function, LAUNCH X431 PRO3S+ Smartlink HD Automotive obd2 scanner also features various service functions to help you complete your repair work at ease. which including :

️Oil Lamp Reset Service Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

️EPB Electronic Park Brake Reset  It is important in the maintenance of electronic braking system's safety and efficiency.

️BAT battery service  Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

️DPF Diesel Particulate Filter Reset  Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

️SAS Steering Angel Sensor Reset Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

️TPMS Tire Pressure Monitoring System Reset  Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

️IM-MMO K-eey PrograA-mming

️ABS Bleeding  ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

️Sunroof Reset  The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

️Suspension Reset  Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

️Gearbox (Transmission )Reset

️AFS Headlamp Reset  'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

Injector Coding

️Electronic Throttle Adaptation /Electronic Throttle Position Reset

LAUNCH X431 PRO3S+ Smartlink HD also supports Advanced and Deep Maintenance Functions such as-- Head light Fitting, Seat Matching, Door and Window Initialization Study, Sunroof Initialization, Air Suspension Matching, Gearbox Matching, Injector Calibration, Multimedia Video Reset, Cluster Reset, IM-MMObilizer Service, Tire Change Reset, (depending on the specific car models, not for all cars).

6.3 ways to display data flow.

There are 3 types of display modes available for data viewing, allowing you to view various types of parameters in the most suitable way.

a).Value : This is the default mode which displays the parameters in texts and shows in list format.

b).Graph : Displays the parameters in waveform graphs.

c).Combine : This option is mostly used in graph merge status for data comparison. In this case, different items are marked in different colors.

7.Remote Diagnosis.

This option aims to help repair shops or technicians launch instant messaging and remote diagnosis, making the repair job getting fixed faster.

8.Guided Function

This function is only for Volkswagen and Audi models. If you don?t know how to operate the device, you can use this function for guided operation.

LAUNCH X431 PRO3S+ Smartlink HD More other functions:

Auto VIN Scan

Diagnostic Feedback:This item allows you to feedback your diagnostic problems to us for analysis and troubleshooting.

Health Report Generate & Share & Print

Diagnostic History:Generally once a vehicle diagnosis is performed, the tool will record the every details of diagnostic process. The History function provides direct access to the previously tested vehicles and users can resume from the last operation, without the necessity of starting from scratch.

Live DataStream Graphing&Record&Playback

One-click Update:Lets you update your diagnostic software online.

Intelligent Diagnose: This module allows you to use the VIN information of the currently identified vehicle to access its data (including vehicle information, historical diagnostic records) from the cloud server to perform quick test.

8+ EXTENSION MODULES & PROFESSIONAL TECHNICA.L SERVIC.E,GET MORE FUNCTIONS & BUSINESS

[8 Add-on Service Modules] This LAUNCH scanner can work with 8 service tools to better suit your various repair needs: O2-1 Scopebox S2-2 SensorboxS2-2 MultimiterVSP-600BST360X431 TSGUNX-PROG3 IM-MMObilizerX431 WIFI Printer etc. ***All are sold separately.

️NEW OPTIONAL FUNCTIONS:️ (You can perform more comprehensive vehicle inspections with LAUNCH PRO3S+ SMARTLINK HD,need EXTRA-BUY )

1.Scopebox :Quickly acquire the circuit signal, and slowly display the waveform for better data analysis.(NEED EXTRA BUY)

2.S2-2 Sensorbox:Specially designed to diagnose and simulator vehicle sensor faults quickly and conveniently.(NEED EXTRA BUY)

3.S2-2 Multimeter:Allows you to measure the physical parameters such as voltage, resistance, frequency etc. It utilizes the same hardware as the S2-2 Sensorbox.(NEED EXTRA BUY)

4.Videoscope:Allows you to check those unseen parts of engine, fuel tank, braking system. It needs to work with the compatible Videoscope device (NEED EXTRA BUY).

5.BST360 (Battery Tester):allows you to fix battery detection faster and easier. It needs to work with the specific Bluetooth battery tester (NEED EXTRA BUY)

6.TSGUN TPMS Device:allows you to configure the tablet as TPMS activation & diagnostic tool, which provides the ability to trigger TPMS sensor, p-r-o-g-ram TPMS sensor, perform the relearning procedure. It needs to work with the compatible TSGUN device (NEED EXTRA BUY)

7.X-PROG 3 IM-MMObilizer Pro-grammer:Allows you to perform the read-write function for vehicle K-eeys,EEPROM, MCU, and EEPROM/FLASH of vehicle engine and gearbox ECU,this X431 diagnostic scanner providing fast, easy, and intuitive k-ey pro-gramming for V.A.G group vehicles with 2/3/3.5 gen. IM-MMO, and most Asian cars with low-level antitheft systems; also to have completed IM-MMO & K-ey Pro-gramming (read & write 1200+ EEPROM and MCU chips, etc.) for VW/Audi/Skoda/Seat models manufactured after 2008 with 4/5/5.5/6 gen.(NEED EXTRA BUY)

8.Wi-Fi Printer: you can print your diagnosis and maintenance report directly by selecting "Print via Wi-Fi".(NEED EXTRA BUY)

9.New Energy Battery Pack: Supports reading the current SOC/SOH, cell/module voltage, input/output current and power, battery temperature, as well as reading the detailed status information and fault information of the battery pack, automatically calculating the total voltage, voltage difference, maximum/minimum voltage and other K-eey index data, automatically labeling the abnormal data, and quickly locating the battery pack problems.

10.Mall service:Get more special function and advanced function.

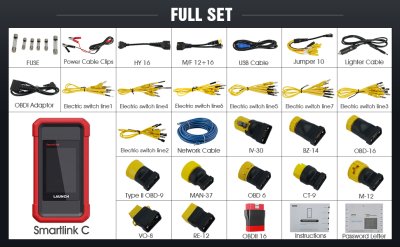

Package List:

1.BOX 1: X431 PRO3S+ host,SmartLink C V2.0,HD15F to OBDII 16 Connector ,UK Plug, EU Plug ,US Plug, DB15F to HD15F Cable, Network Cable, Type A -Type B USB Cable, Type A -Type C USB Cable, PIN envelope ,Quick Start Guide

2.BOX 2: BENZ-38,NISSAN-14+16,BENZ-14 ,BMW-20,CHRYSLER-6, FORD-6+1 ,GM/VAZ-12, HONDA-3,KIA-20 , MITSUBISHI/HYUNDAI-12+16, TOYOTA-17, TOYOTA-22, BENZ-14 ,CAT-9, HYUNDAI-16 , ISUZU-20 ,IVECO-30, IVECO-38, JUMPER 10, MAN-12, MAN-37, MITSUBISHI-12+16, RENAULT-12, Type II OBD 9, VOLVO-8, Power Cable, Cigarette lighter Cable , Switching Cable 1-9, OBD 16 connector,OBD 6 connector
